High Speed Packaging Equipment

Standard High Speed Packagers

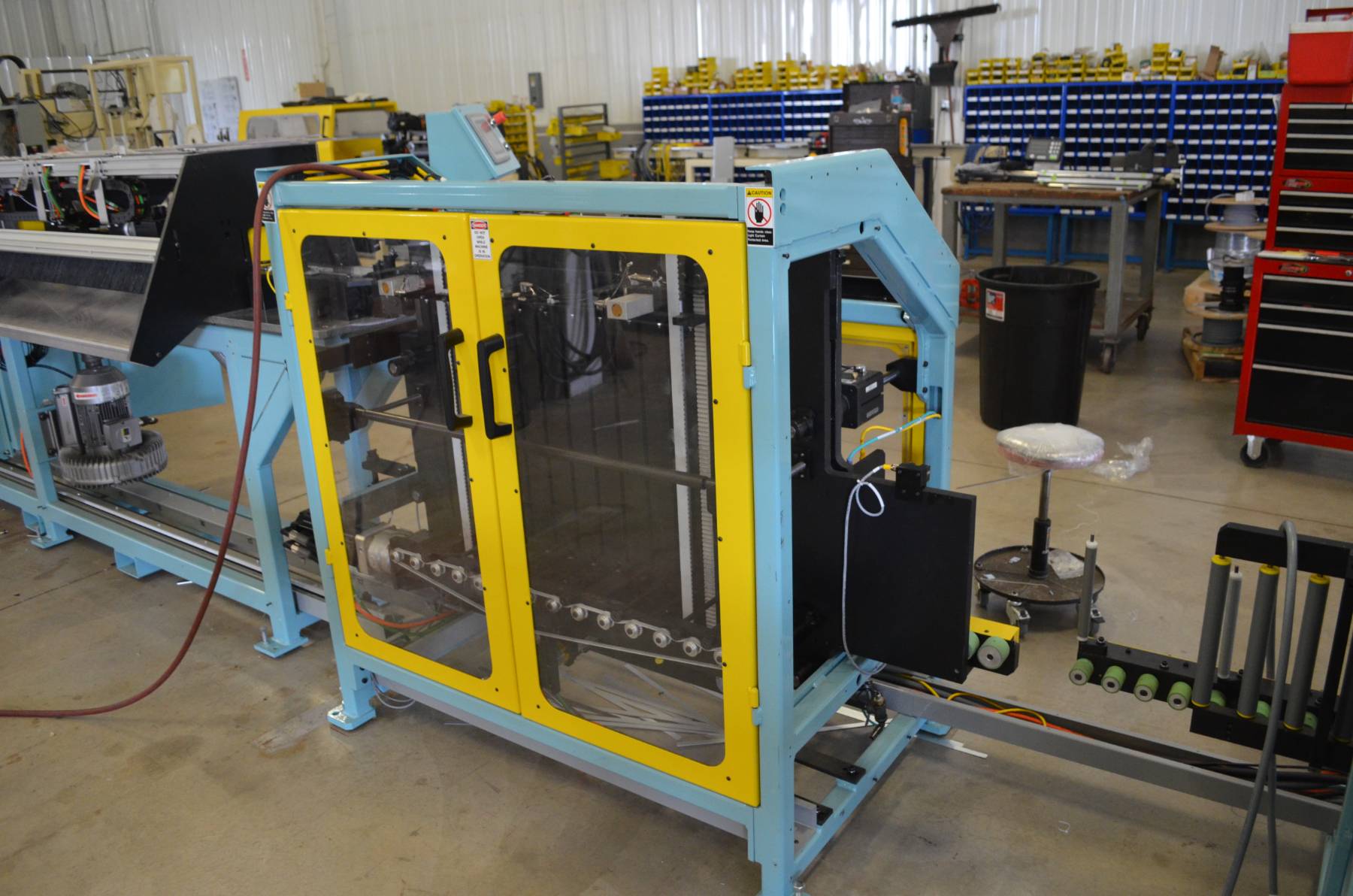

4-METER-PCKGR-WO-GRDSPackaging equipment has a history of being the limiting factor for determining speed on high speed cut-to-length machines. PD&B has the solution.

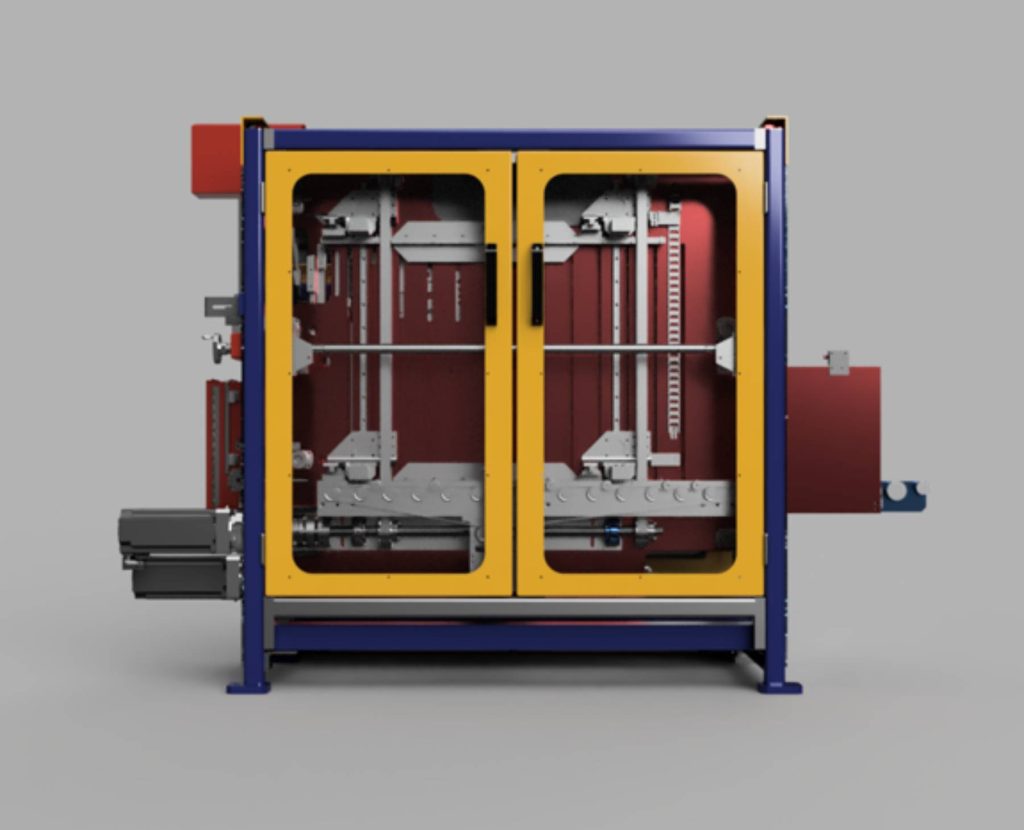

We manufacture standard high speed packagers to accumulate, band, and stack finished bundles of MPE, or Multivoid aluminum tubing.

This machinery is capable of processing up to 500 parts per minute or more, depending on part construction. All of it accomplished while never touching the part with metal of any kind.

We manufacture specialty packagers for 2, 3 and 4 meter long parts that come with proprietary banding and stacking systems to increase efficiency and product protection.  No longer do you have to worry about damaging or bending the finished part. The tight bundles make it easy for operators to load material on pallets with ease.

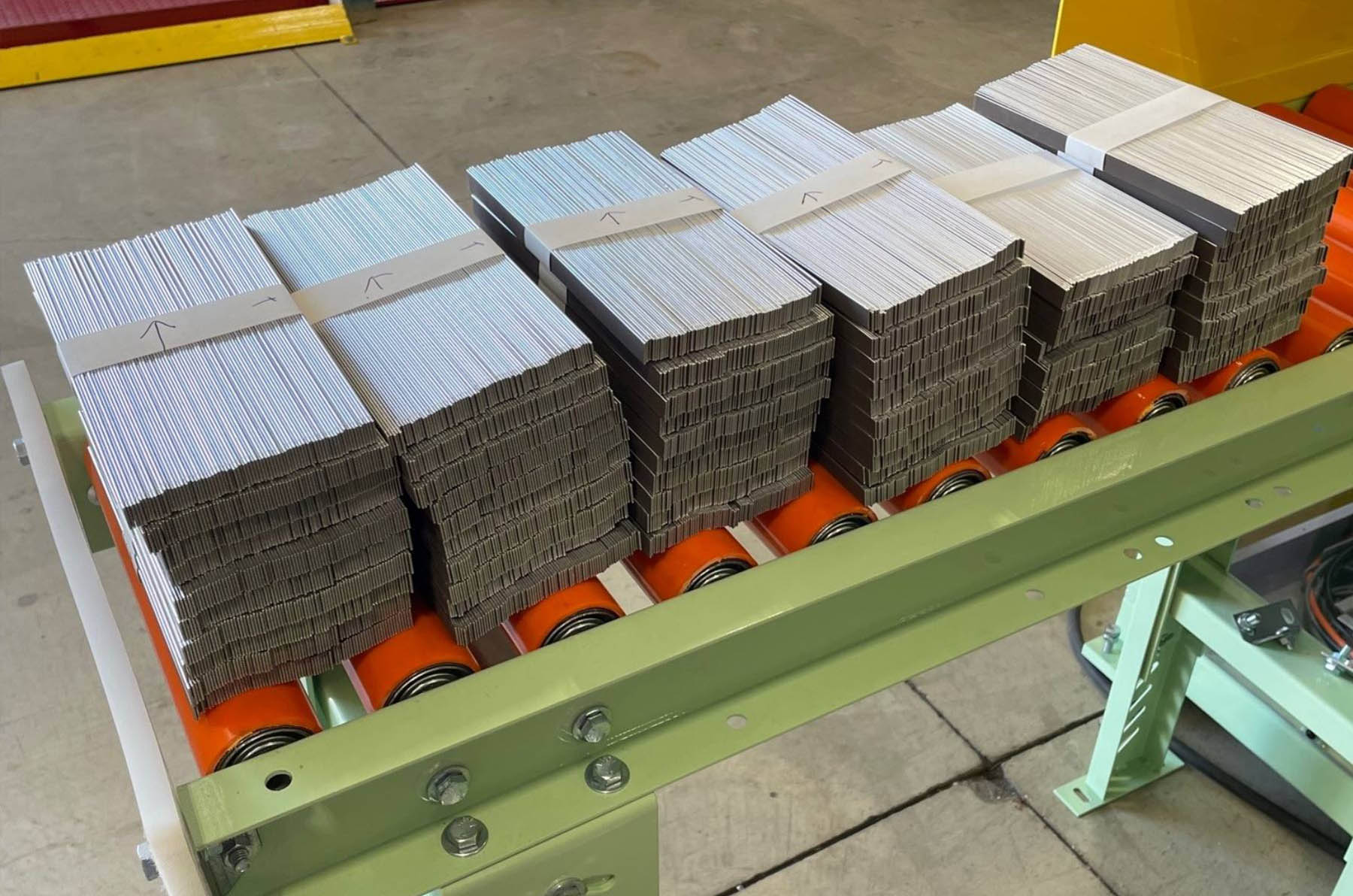

Our packager utilizes a buffer which gently stages the parts for transfer and stacking.  The number of parts per stack is simply selected with the remote HMI/operator station.  The completed stack is then lowered onto a transfer conveyor that moves it through the PD&B bander where multiple stacks are taped with one of three different banding materials.

high-speed-packagerOperators have several control options via the integral HMI such as:

  • How many parts per bundle
  • How tight the banding is
  • How many bundles per stack.

The system was designed with the operator in mind using an intuitive interface system.
