High Speed Inspection Machine

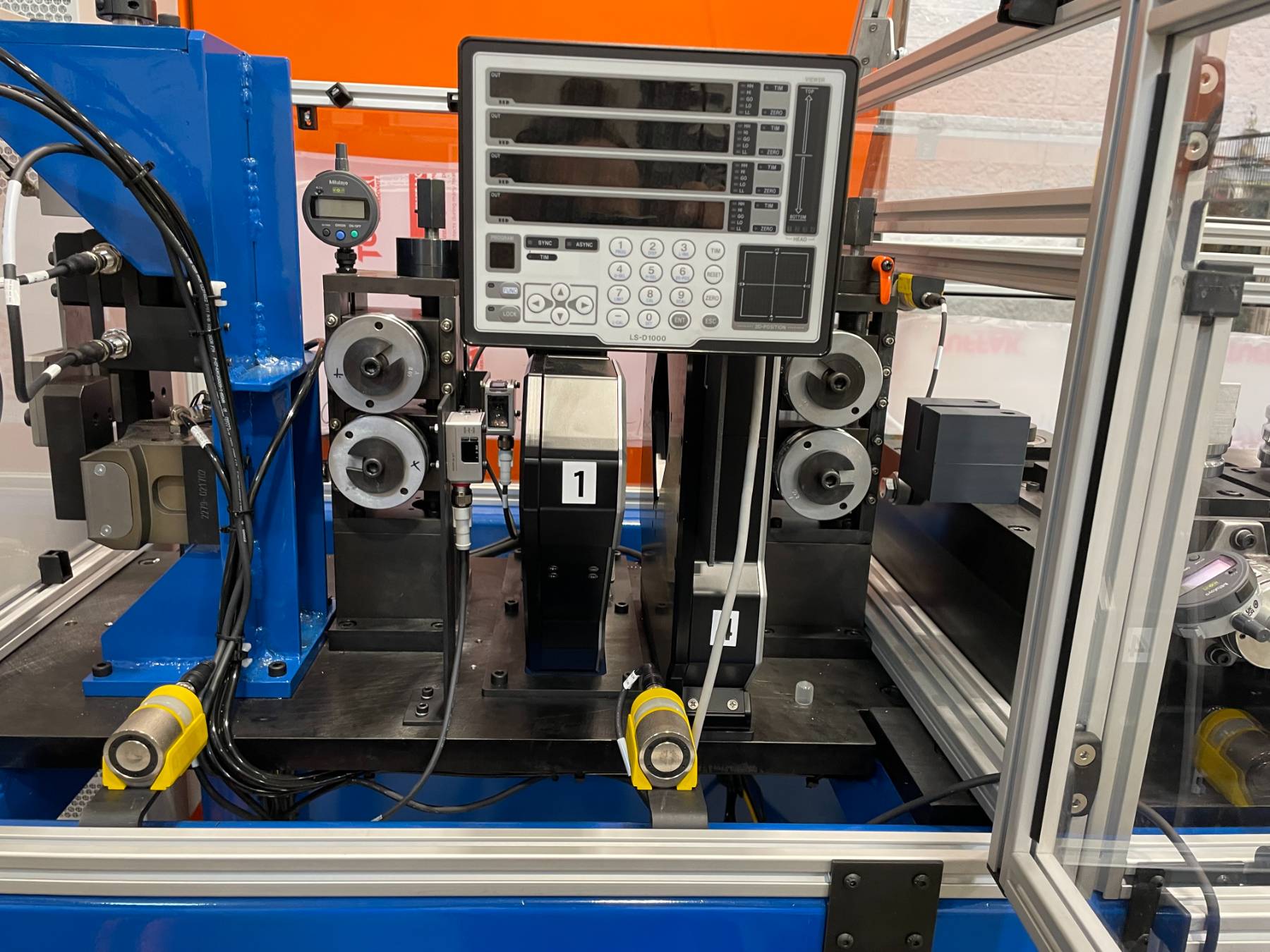

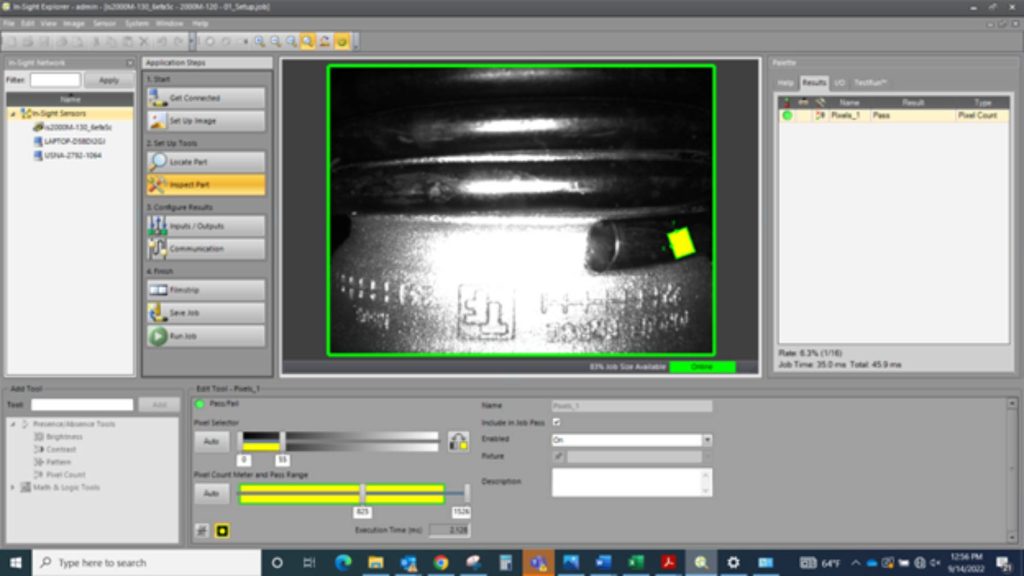

The PD&B Inc. High Speed Inspection machine incorporates a vacuum assisted part conveyance package through a vision inspection chamber and then out the opposite side. A total of three vacuum conveyors make up the package that move the part, and maintain part stability as the vision system inspects the top and bottom of the parts.  The standard camera system is provided by Pressco Vision systems, although, alternate manufacturers can be integrated as well.

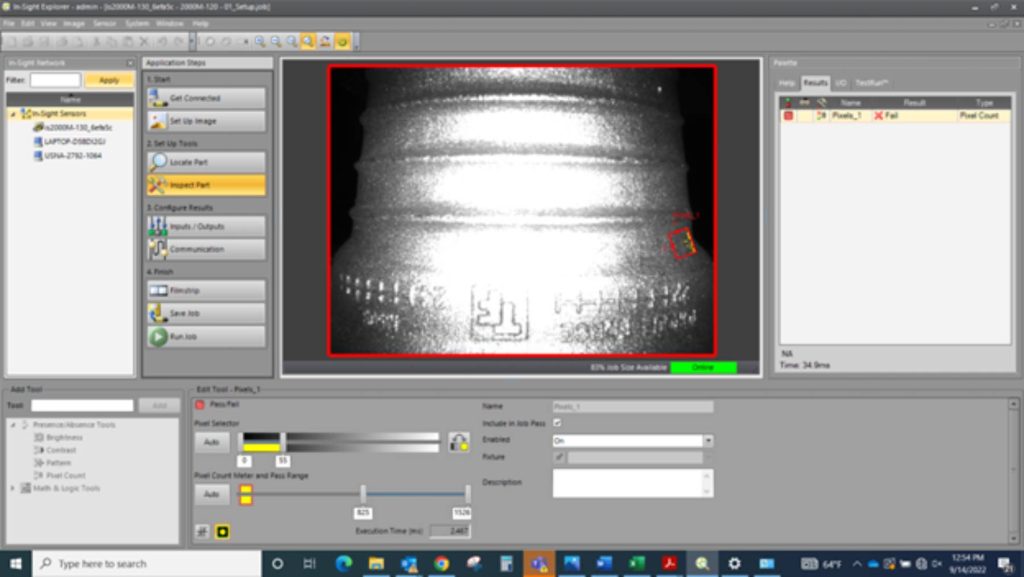

inspection-machineFinally, once the parts have been examined there are three possible part paths.

They can be ejected out the back side to scrap, out the front side for further inspection, or, straight through to the awaiting packaging equipment.

It is totally dependent on the criteria you set up at installation.

The PD&B Inc. High Speed Inspection machine incorporates a vacuum assisted part conveyance package through a vision inspection chamber and then out the opposite side. A total of three vacuum conveyors make up the package that move the part, and maintain part stability as the vision system inspects the top and bottom of the parts.  The standard camera system is provided by Pressco Vision systems, although, alternate manufacturers can be integrated as well.

Once the parts have been examined there are three possible part paths. They can be ejected out the back side to scrap, out the front side for further inspection, or, straight through to the awaiting packaging equipment. It is totally dependent on the criteria you set up at installation.

Let’s talk it through.
